Epson EB-770F Full HD 1080P 3LCD Laser Projector

The large, easy-to-read HD display for dynamic classroom environments.

Captivate and inspire students with the eye-catching, easy-to-read display of the EB-770F. With its intelligent ultra short throw design, the dynamic EB-770F delivers stunning HD images up to 150"—which is 2.4 times larger than a 75" flat panel—and can be easily seen from nearly anywhere in the classroom. Engineered for reliability, this incredibly bright 4,100-lumen¹ display has a 20,000-hour, virtually maintenance-free laser light source², which means there are no lamps to purchase or replace—ever. Providing wireless connectivity with casting capability³ and convenient split screen functionality⁴, the EB-770F makes it easy for teachers and students to display up to four screens simultaneously. EB-770F supports a variety of aspect ratios, including 16:9 as well as ultra wide 21:9 and 16:6. Offering the flexibility to display on existing whiteboards, the versatile EB-770F delivers even more value by allowing teachers to retain valuable whiteboard space when not in use.

4,100 lumens of colour and white brightness¹
Full HD 1080p resolution for exceptional image quality
No lamps to replace ever with solid-state laser light source
Convenient ultra short throw design
16:9 display with additional support for ultra wide 21:9 & 16:6

Tìm linh kiện Hỗ trợ

Tổng quát

Massive, wide clear content for a full, uncompromised learning/ meeting experience

Enjoy a dynamic wide screen viewing experience with our Ultra short-throw EB-770F. You may easily change the projection aspect depends on your working space. Maximum screen size is improved up to 150 inch (Diagonal). Have all the content well-viewed with our 21:9 aspect ratio at up to 142" - newly available for 770F.

Incredible Image Quality

Full HD 1080P Resolution at an exceptional value; accepts 4K content.

Brilliantly rich, crystal-clear detail

With excellent contrast ratio of over 5,000,000:1, EB-760W delivers well-defined image to you - whether it is numbers, pictures, graphs or videos. It's all about seeing the little details in a better light.

Connect up to 50 devices³

Free downloadable Epson iProjection™ software makes it easy to project up to 4 devices at a time wirelessly from Chromebooks, iOS® and Android™ devices, Mac® computers and PCs³; with moderator feature⁶, teachers never lose control of the displayed content.

Đặc điểm

Projection Technology:

Projection Technology: RGB liquid crystal shutter projection system

Brightness:

White Light Output (Normal / Extended): 4,100lm / 2,800lmColour Light Output: 4,100lmContrast Ratio: Over 5,000,000 : 1

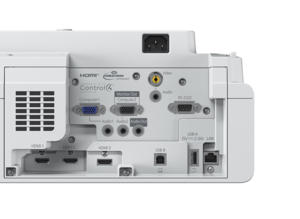

Connectivity:

Analog Input: Computer In: 2
Composite: 1Digital Input: HDMI In: 3 (HDCP 2.3)Analog Output: Computer Out: 1 (Share with Computer2)Audio Input: Audio In: 3 (Stereo Mini)Audio Output: Audio Out: 1 (Stereo Mini)Mic I/O: Mic In: 1 (Stereo Mini)Control I/O: RS232C: 1 (D-sub 9pin)

USB I/O
Type A: 2 (1 (Side): For PC Free, FW Update, Copy OSD Settings; 1 (Rear): For PC Free, FW Update, Copy OSD Settings or 5V/2A Power Supply)
Type B: 1 (For FW Update, Copy OSD Settings, USB Display)Network I/O: Wired LAN: 1 (RJ45)
Wireless LAN: 1 (Built-in and Optional)

Geometric Correction:

Vertical/Horizontal Keystone: ±3° / ±3°Quick Corner: Yes (Manual)

Operating Temperature:

Operating Temperature: 0 - 2,286 m (0 - 7,500 ft): 0 °C - 40 °C [32 °F - 104 °F ] ; 20% to 80% Humidity, No Condensation
Over 2,286 m (7,500 ft): 0 - 35 °C [32 °F - 95 °F] ; 20%-80% Humidity, No Condensation

Operating Altitude:

Operating Altitude: Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft)

Start-Up Period:

Start-Up Period: Less than 10 seconds (Epson Logo)Quick Start-Up: Less than 5 seconds (Display)

Cool Down Period:

Cool Down Period: Instant Off

Internal Speaker(s):

Sound Output: 16W Mono

Weight:

Weight: Approx.5.9kg

Air Filter:

Type: Electrostatic FilterMaintenance Cycle (Normal / Extended) : 12,000 hours / 20,000 hours

Fan Noise:

Fan Noise (Normal / Eco): 37dB / 27dB

Dimension Excluding Feet:

Dimension Excluding Feet (D x W x H): 395 x 356 x 133mm

Image:

Noise Reduction: YesSuper-Resolution: YesDetail Enhancement: Yes

Wireless Specification (In-built wireless LAN and Screen Mirroring):

Supported Speed for Each mode : Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps⁶, IEEE 802.11g (2.4GHz): 54Mbps⁶ IEEE 802.11n (2.4GHz): 72.2Mbps⁶,
IEEE 802.11a (5GHz): 54Mbps⁶, IEEE 802.11n (5GHz): 150Mbps⁶, IEEE 802.11ac (5GHz): 325Mbps⁶
Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps⁶, IEEE 802.11n (2.4GHz): 72.2Mbps⁶,
IEEE 802.11a (5GHz): 54Mbps⁶, IEEE 802.11n (5GHz): 150Mbps⁶, IEEE 802.11ac (5GHz): 325Mbps⁶Supported Mode : Infrastructure, Access Point (Wi-Fi Direct)
Wireless LAN Security
Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast ;
Access Point (Wi-Fi Direct): WPA2-PSK (AES)

Power:

Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz

Power Consumption (220-240V):

Lamp (Normal / Extended): 263W / 199WStandby: (Network On / Off): 2.0W / 0.5W

Direct Power On / Off:

Direct Power On / Off: Yes

Specifications of Main Parts:

LCD: Size: 0.62” (C2Fine)
Resolution: Full HDLight Source: Type: Laser Diode
Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrsProjection Lens: Type: No Optical Zoom / Focus (Manual)
F-Number: 1.60
Focal Length: 3.7mm
Zoom Ratio: 1 – 1.35 (Digital Zoom)
Throw Ratio: 0.25 – 0.35Screen Size (projected distance): Standard: 77” screen 43.3cm
Zoom (Wide):
56” to 140” (32.5 – 89.3cm) @ 16:6
60” to 150” (32.5 – 89.3cm) @ 16:9
55” to 139” (32.5 – 89.3cm) @ 16:10
57” to 142” (39.4 – 85.3cm) @ 21:9

Xem đầy đủ đặc điểm Giấu hết đặc điểm

Print All Specs

Linh kiện

Accessories

Hỗ trợ

Ghi chú:

¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

² No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.

³ For wireless functionality, including via the Epson iProjection App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats. See www.epson.com.sg for details.

⁴ Consult your user manual for split screen input combinations.

⁵ Moderator control, connecting via QR code and projector remote are not available on Epson iProjection for Chromebooks.

⁶ Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors.
