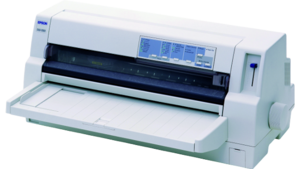

Epson DLQ-3500 Dot Matrix Printer

Thu nhỏ
Epson DLQ-3500 Dot Matrix Printer
Epson DLQ-3500 Dot Matrix Printer

24-Pin Flat-bed Dot Matrix Printer

      • Wide Carriage
      • Speed: up to 550cps (10cpi)
      • Prints up to 8-part forms
      • Optional network connectivity



Where to Buy
Tìm linh kiện Hỗ trợ



  • Máy in 24 kim khổ rộng đáy phẳng nhanh và cực bền
  • In 550 ký tự/giây (tốc độ in nháp 10 ký tự/inch)
  • Nạp giấy và điều chỉnh giấy tự động
  • Có thể in một bộ 8 bản (1 bản gốc + 7 bản sao)
  • Kết nối Parallel và USB Serial qua các tùy chọn Ethernet, Twinax, Coax hoặc Serial
  • Bao gồm các trình in dành cho Windows 95, 98, Me, 2000 và NT 4.0

    • Printing Technology:

    Print Method: Impact dot matrixControl Panel: 7 switches and 12 LEDsPrint Direction: Bi-direction with logic seekingColour: Black, Magenta, Cyan and YellowNumber of Pins in Head: 24 pinsControl Code: ESC/P2 and IBM PPDS emulation

    Print Speed:

    High Speed Draft: 10 cpi: 550 cpsDraft: (10 / 12 /15 cpi): 495 / 594 / 742 cps
    (Condensed, 17 / 20 cpi): 424 / 495 cpsLetter Quality: (10 / 12 / 15 cpi): 165 / 198 / 247 cps
    (Condensed, 17 / 20 cpi): 282 / 330 cps

    Reliability:

    Printhead Life: 400 million strokes / wireMean Print Volume Between Failure (MVBF): 25 million lines (except printhead)Mean Time Between Failure (MTBF): 10,000 POH

    Print Characteristics:

    Character Sets: (14 international character sets and one legal character sets) USA, France, Germany, UK, Denmark I, Sweden, Italy, Spain I, Japan, Norway, Denmark II, Spain II, Latin America, Korea, Legal
    (1 Italic and 12 graphical character tables) Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865 (Nordic), BRASCII, Abicomp, Roman 8, ISO Latin 1, PC 858, ISO 8859-15Bitmap Fonts: EPSON Draft: 10 cpi, 12 cpi, 15 cpi. EPSON Roman: 10 cpi, 12 cpi, 15 cpi, Proportional. EPSON Sans Serif: 10 cpi, 12 cpi, 15 cpi, Proportional. EPSON Courier: 10 cpi, 12 cpi, 15 cpi. EPSON Prestige: 10 cpi, 12 cpi. EPSON Script: 10 cpi. EPSON OCR-B: 10 cpi. EPSON Orator: 10 cpi. EPSON Orator-S: 10 cpi. EPSON Script C: Proportional.Scalable Fonts: EPSON Roman: 10.5 pt., 8 pt. - 32 pt. (every 2 pt.). EPSON Sans Serif: 10.5 pt., 8 pt. - 32 pt. (every 2 pt.). EPSON Roman T: 10.5 pt., 8 pt. - 32 pt. (every 2 pt.). EPSON Sans Serif H: 10.5 pt., 8 pt. - 32 pt. (every 2 pt.).Barcode: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET

    Paper Path:

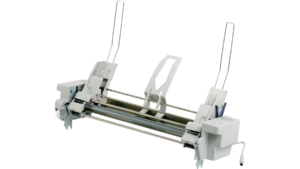

    Manual Insertion: Front in, Front out Push Tractor: Rear in, Front outCut Sheet Feeder: Rear in, Front out

    Paper Media:

    Cut Sheet (Single Sheet): (Manual Insertion) Length: 80.0 ~ 420.0mm (3.15 ~ 16.5")
    (Manual Insertion) Width: 90.0 ~ 420.0mm (3.5 ~ 16.5")
    (Manual Insertion) Thickness: 0.065 ~ 0.19mm (0.0025 ~ 0.0074")Cut Sheet (Multi-part Forms): (Manual Insertion) Length: 80.0 ~ 420.0mm (3.15 ~ 16.5")
    (Manual Insertion) Width: 90.0 ~ 420.0mm (3.5 ~ 16.5")
    (Manual Insertion) Thickness: 0.12 ~ 0.62mm (0.0047 ~ 0.024")Continuous Paper (Single Sheet / Multi-part): Length: 76.2 ~ 558.8mm (3.0 ~ 22.0")
    Width: 101.6 ~ 406.4mm (4.0 ~ 16.0")
    Thickness: 0.065 ~ 0.19mm (0.0025 ~ 0.0074")Envelope (No.6): Length: 92.0mm (3.6")
    Width: 165.0mm (6.5")
    Thickness: 0.16 ~ 0.52mm (0.0063 ~ 0.0205")Envelope (No.10): Length: 105.0mm (4.1")
    Width: 241.0mm (9.5")
    Thickness: 0.16 ~ 0.52mm (0.0063 ~ 0.0205")Labels: Base Sheet Length (one page): 76.2 ~ 558.8mm (3.0 ~ 22.0")
    Base Sheet Width: 101.6 ~ 406.4mm (4.0 ~ 16.0")
    Base Sheet Thickness: 0.07 ~ 0.09mm (0.0028 ~ 0.0035")
    Total Thickness: 0.16 ~ 0.19mm (0.0063 ~ 0.0075")Card: Length: 100.0 ~ 200.0mm (3.9 ~ 7.8")
    Width: 100.0 ~ 200.0mm (3.9 ~ 7.8")
    Thickness: 0.22mm (0.0087")Line Spacing: 4.23mm (1/6") or programmable in increments of 0.0706mm (1/360")

    General:

    Memory Buffer: 128 KBMultipart Copy Capability: 1 original + 7 copies

    Supported OS and Applications:

    Supported OS: Windows® XP (32bit) SP2 or later Professional
    Windows Vista® (32bit / 64bit) SP1 or later Ultimate / Enterprise / Business
    Windows® 7 / 8 / 8.1 / 10 (32bit / 64bit) Ultimate / Enterprise / Professional
    Windows Server® 2003 (32bit / 64bit) SP2 Standard / Enterprise
    Windows Server® 2008 Standard / Enterprise (32bit / 64bit), R2 Standard / Enterprise (64bit)

    Dimensions and Weight:

    Dimensions (W x D x H): 660 x 432 x 276 mmWeight: 18.1kg

    Consumables:

    Consumables: Black (S015139, S015066) / Colour (Black, Cyan, Magenta, Yellow)
    Type: Fabric
    Ribbon Life - Black (S015139): Approx. 9 million characters
    Ribbon Life - Black (S015066): Approx. 6 million characters
    Ribbon Life - Colour (Cyan / Magenta / Yellow / Black): 1.1 million characters / 1.1 million characters / 0.8 million characters / 1.5 million characters

    Options:

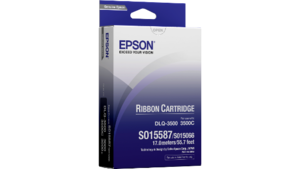

    Options: Black Ribbon Cartridge (S015066) / (S015139): C13S015587 / C13S015571
    Colour Ribbon Cartridge (S015067): C13S015566
    Serial Interface Board (No Buffer Type-B): C12C824432
    Epson 10/100 Base Tx Int. Print Server 2: C12C824352

    Environmental Conditions (Operating):

    Temperature: 5 to 35°CHumidty: 10 to 80 % RH

    Acoustic Noise:

    Acoustic Noise: Approx. 59 dB(A) (ISO 7779 pattern)

    Input Data Buffer:

    Input Data Buffer: 128 KB

    Interface:

    Interface: Bi-directional parallel interface (IEEE-1284 nibble mode supported), USB 2.0 (Full Speed), Optional Serial Interface Board (No Buffer Type-B)
